MicroSmart Engraving Systems, New
What Is It?
This is a state-of-the-art engraving system. You can use LinkMotion USB for USB Port interface or LinkMotion Virtual Controller for Parallel Port interface.
Features
- LinkMotion USB Interface can work with either desktop or laptop PC computers with USB port. No need to open computers and insert any circuit cards. A standard USB cable connects the computer to a microstepping driver module, which in turn is connected to the machine. The computer and your favorite application is available to design your next job while the engraving machine is in the process of engraving your previous job.
- LinkMotion interface can work with either desktop or laptop PC computers with a Parallel Port. No need to open computers and insert any circuit cards. A standard parallel port cable connects the computer to a microstepping driver module, which in turn is connected to the machine. The computer and your favorite application will be busy while the engraving machine is in the process of engraving your previous job.
- A Wireless Control Pad is available. It allows jogging, nudging, surfacing, going Home, checking the spindle motor, pause, escape, and start jobs. An additional USB port is required for the Wireless Control Pad.
Optional Items
- Collet Spindle : Includes choice of collet and draw bar
- Dual Carriage : Must be factory installed, cannot be removed for single head engraving
- Vacuum Chip Removal System : Includes: pump, canister, hose and choice of vacuum nose
- Deep Vise : For holding large and unusual objects (capacity: 3.0"L x 1.5"H)
- Versa Vise II : Utilize a wide variety of clamps on your T-Slot table
- Versa Vise II Table : Includes mounting plate and VersaVise II with 9" jaws (For 12x12 system Only)
- Diamond Drag Adapter : For scratch engraving, includes diamond insert
- Burnishing Adapter : Simple to use, EZ-RiderBurnishing Adapter
- Adjustable Height Riser Blocks : Increase the ability to engrave thick objects - up to 5" max
- Table Stand : Available for MicroSmart 1624 and larger tables only
- FontPak : 16 Fonts include Single Line, MultiLine, Symbol, Ornament, and Occasion
- Wireless Control Pad : Requires Additional USB Port
Specifications
- System Specifications:

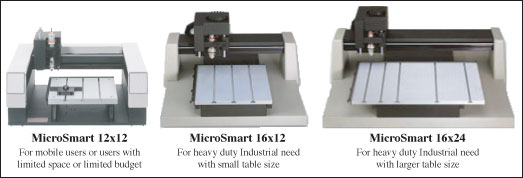

- 12x12
- 16x12
- 16x24
- Engraving Area
- 12"x12"
- 16"x12"
- 16"x24"
- Extend-a-Plate
- 12" x Any length in multiple sections
- 12" x Any length in multiple sections
- 24" x Any length in multiple sections
- Spindle Size
- 11/64" or 1/4"
- 11/64" or 1/4"
- 11/64" or 1/4"
- Spindle Speed
- 0-12,0000 RPM variable
- 0-18,0000 RPM variable
- 0-18,0000 RPM variable
- Table Type
- T-slot
- T-slot
- T-slot
- Clearance
- 3.25"
- Adjustable
- Adjustable
- Z-Axis Stroke
- 1.25"
- 1.75"
- 1.75"
- Table Dimensions LxWxH
- 21"x22"x11"
- 28"x33"x16"
- 40"x33"x16"
- Shipping Dimensions
- 25"x30"x19"
- 43"x41"x32"
- 43"x41"x32"
- Shipping Weight
- 95lbs
- 210lbs
- 320lbs
- Computer Interface
- Parallel Port or USB Port
- Parallel Port or USB Port
- Parallel Port or USB Port
All systems include LinkMotion Virtual Controller driver software, Clip art package, Accessory kit, Manual, MaxFonts (20 - one, two and three line fonts regular and Italic), Quick clamp and 6 month manufacturers warranty.
